The automatic remote control winding machine is equipped with automatic film loading, film breaking, mucosal mechanism and remote control device. The operator can operate automatically on the forklift or by remote control. The whole film is automatically and continuously packaged, which can effectively reduce labor intensity and improve work efficiency. The dynamic pre-stretching film automatically delivers the film, the stretching ratio is up to 250%, effectively saving the stretch film.
Sandwich membrane and broken membrane structure can be selected to improve work efficiency
Scope of application and advantages:
· Single winding machine with the highest degree of automation

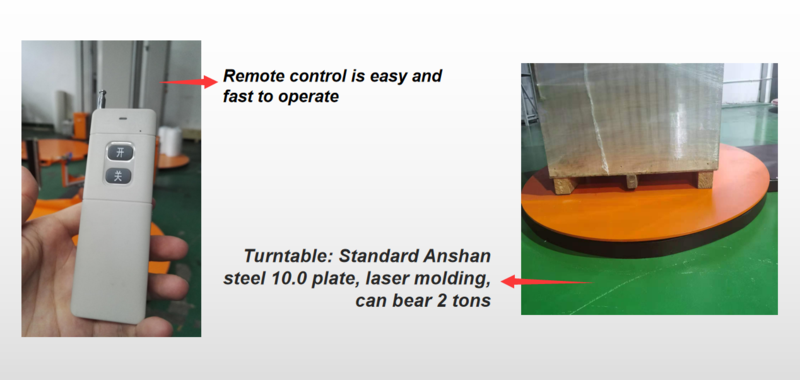

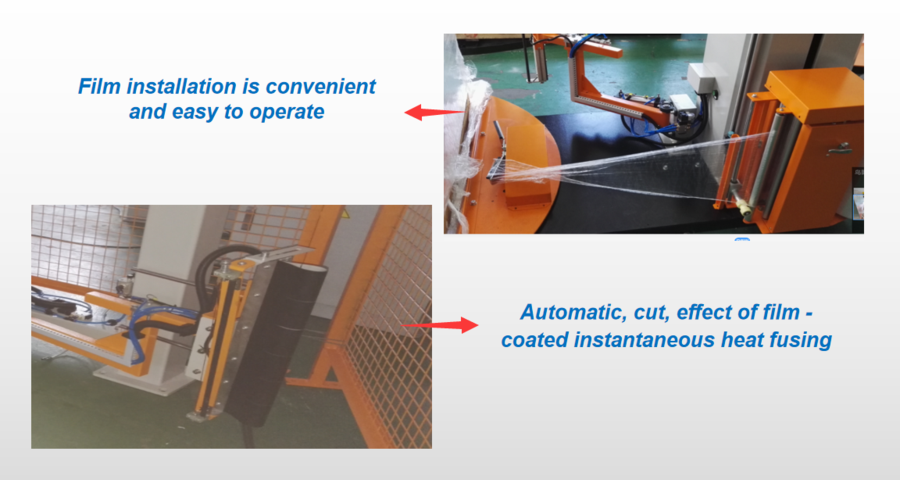

· Automatic film loading, film breaking and mucous membrane, remote control
· Save stretch film
High quality products · Start with details
Product technical parameters:
Wrap film specifications
（500-1200）mm×(500-1200)mm（L×W)
Packing height (Max)
2100 / 2400 / 2800mm
The packing efficiency
20-40 litres/hour
Turntable speed
0-14rpm speed is adjustable with frequency conversion
Turntable diameter
1800mm
Turntable height
82mm
Turntable load bearing (Max)
2000kg
Upper film breaking mechanism
Automatic membrane, broken membrane, mucosa
The membrane system
Pre-stretching film frame, pre-stretching up to 250%, automatic film feeding, frequency control
Rise and fall pillar
Double chain structure, adjustable lifting speed by frequency conversion
Control system
PLC controlled, the number and number of winding layers can be adjusted, the turntable can reset automatically, and the height of the goods can be measured automatically
Machine weight (Max)
750kg
Power/voltage
Turntable 0.75KW, membrane frame 0.2KW, column 0.37kW /AC220V special specifications can be customized
